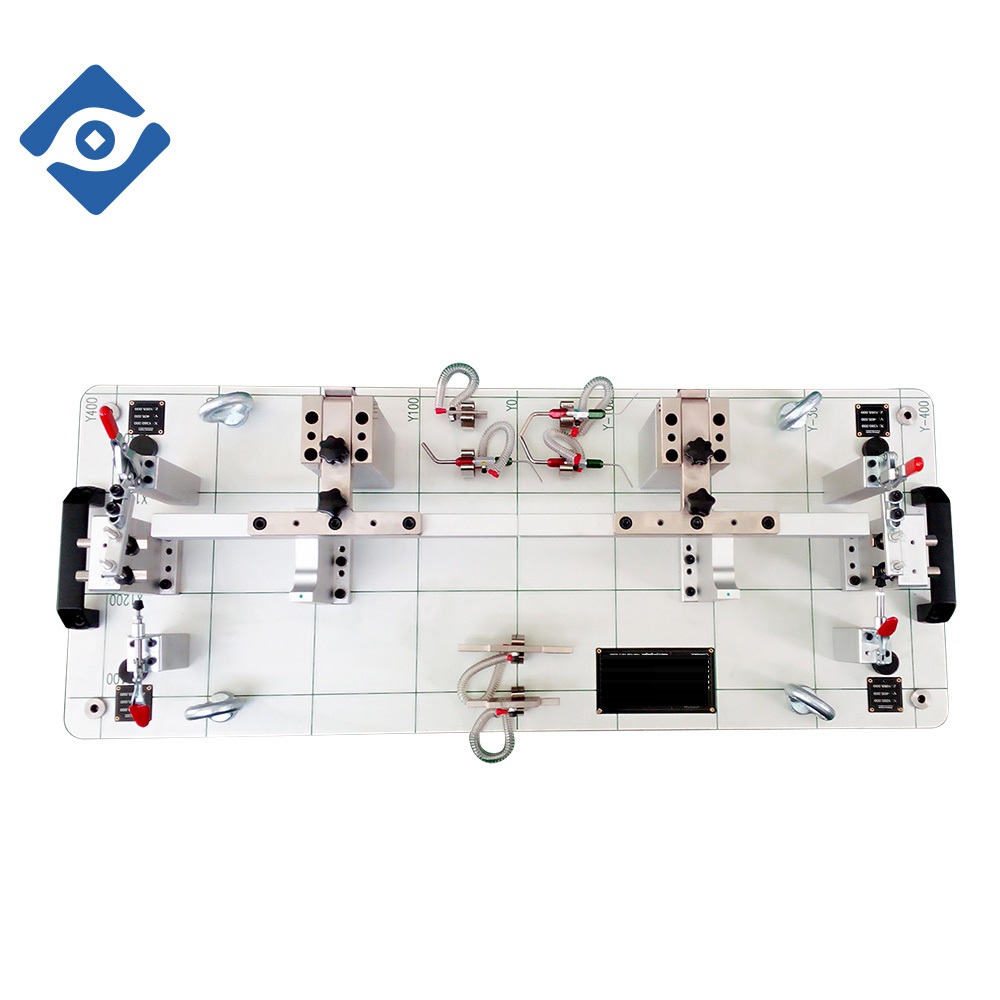

CMM前部件检具

CMM前部件检具

CMM检具是一种专用的检测夹具，旨在在大批量生产零件期间进行质量检验。它比一般的测量工具更省时、更方便。

---

检具

它是一种专用的检测设备，用于测量和评估零件的尺寸质量；

它是根据需求方的具体要求专门制造的特殊夹具，直接用于检查零件的尺寸、形状/轮廓和位置特征；

它是用于冲压件、金属件和焊接件在线检查的特殊检测设备；

它是一种专门设计和制造的特殊检测工具，用于方便质量检查、提高生产效率、控制产品质量的一致性、降低成本，并在大规模生产过程中消除人为因素对产品的影响。

Measuring jig

It is an auxiliary bracket when measuring parts with CMM. All supporting surfaces (points) and positioning datum surfaces (points) must be milled according to the CAD data of the part. The measuring bracket of some special parts should also have the function of part of the car checking fixture.

Automobile checking fixtures and measuring jigs can reasonably measure the geometric parameters of parts according to valid product drawings and CAD data. With the help of three-coordinate measuring machine(CMM), the automobile checking fixtures and measuring jigs can be verified and appraised.

---

铣床/磨床/CNC

CMM测量

装配
